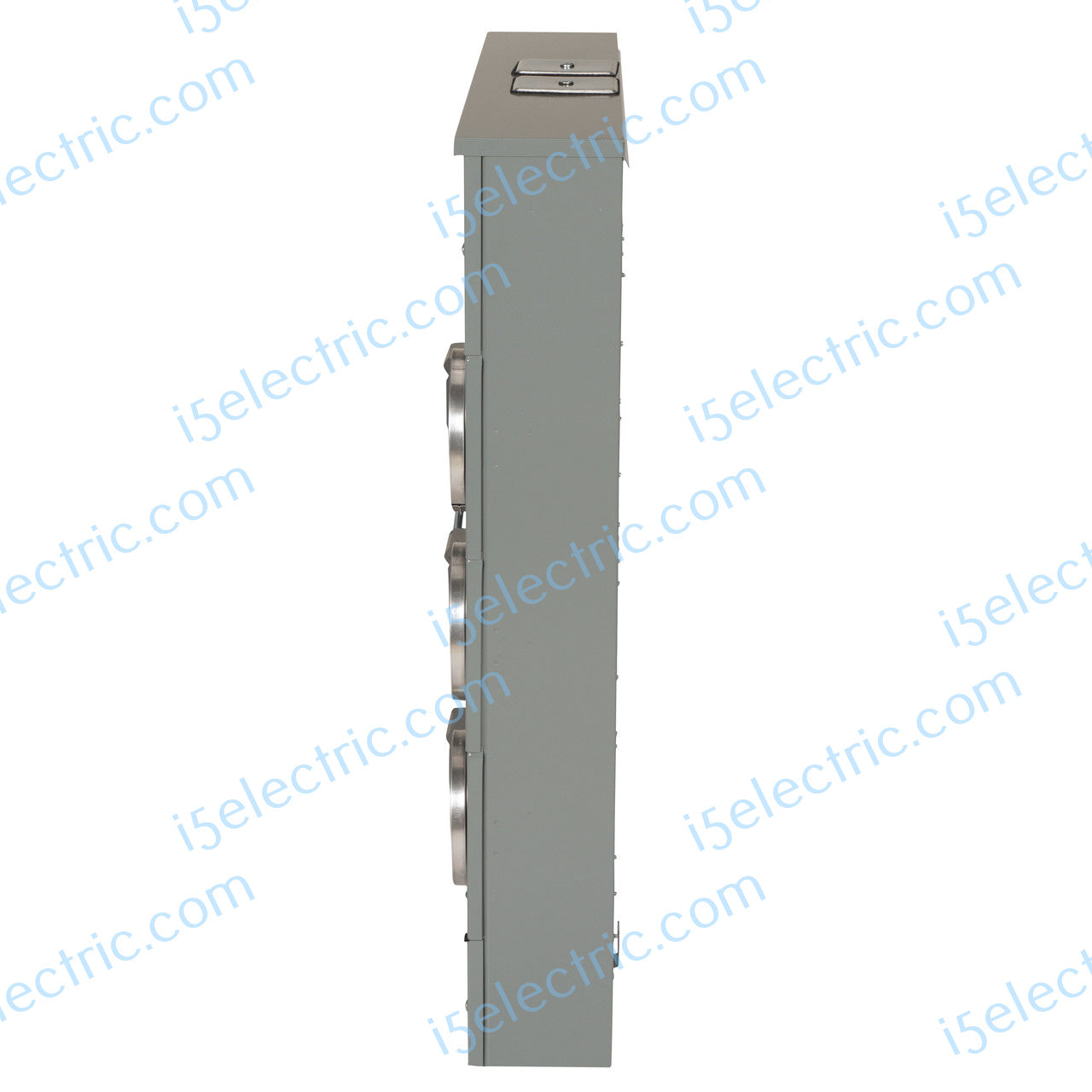

  • Meter-Pak MP55125 500A 5 Gang 125A Each; Right

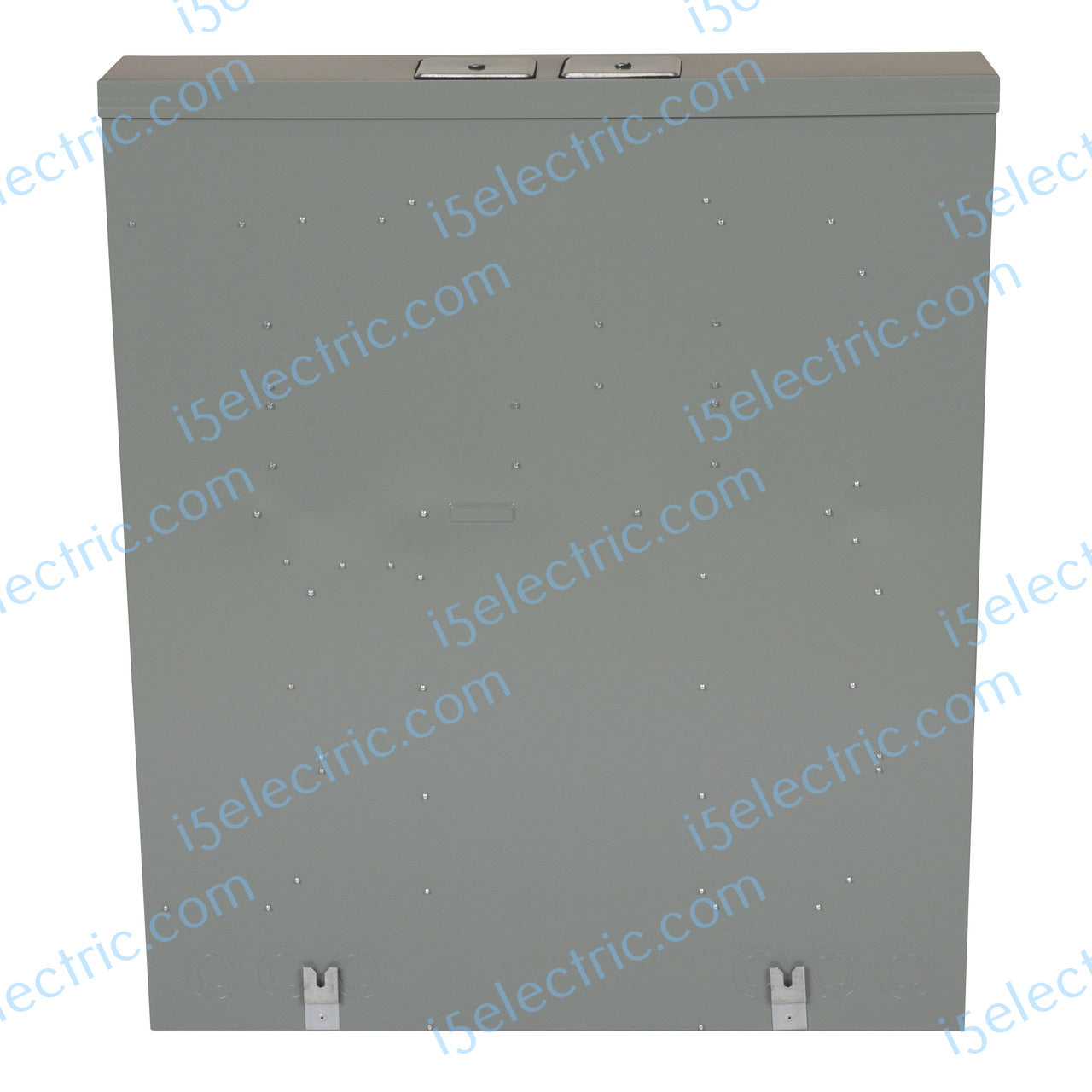

  • Meter-Pak MP55125 500A 5 Gang 125A Each; Back

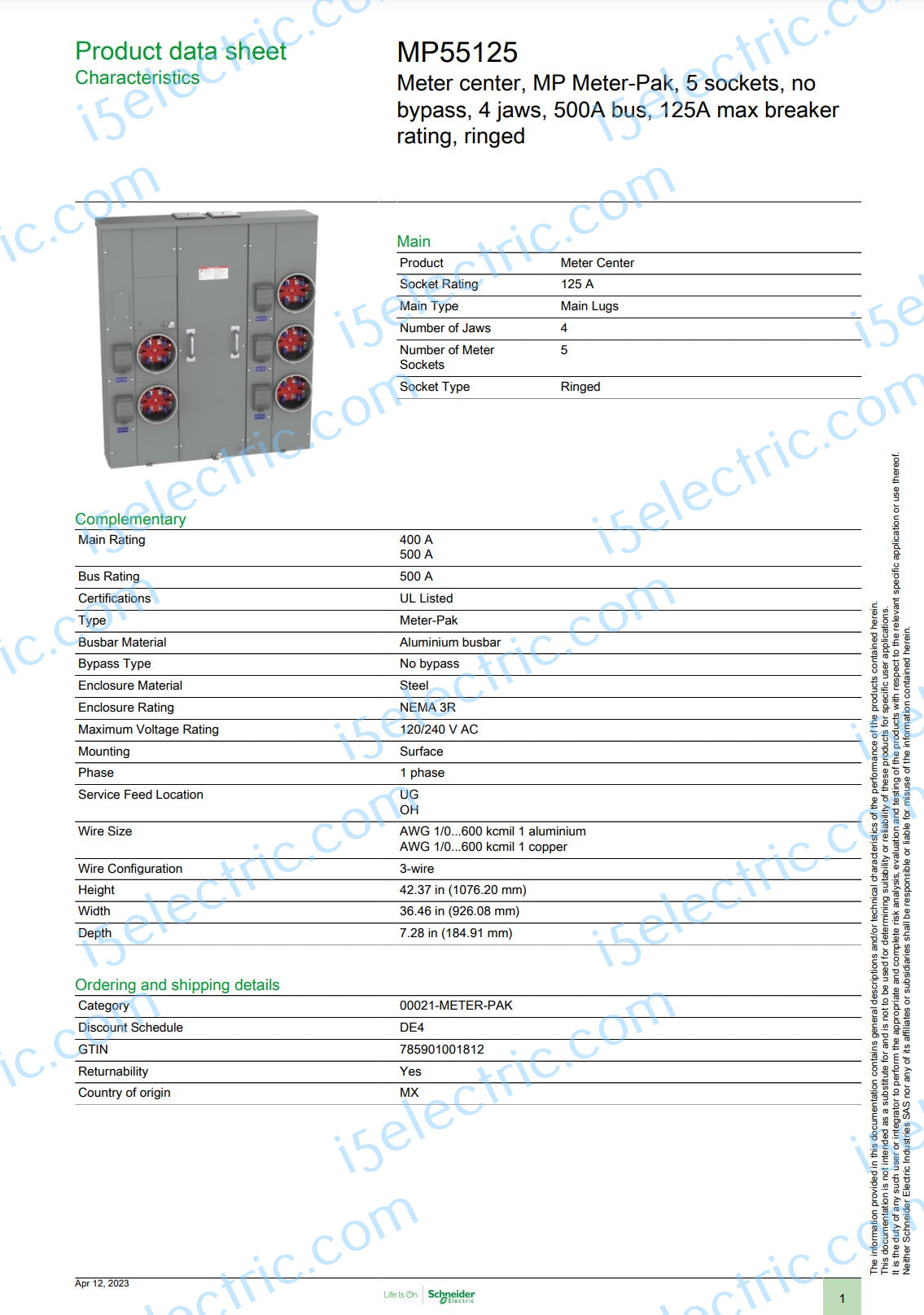

  • Meter-Pak MP55125 500A 5 Gang 125A Each; Specs1
  • Meter-Pak MP55125 500A 5 Gang 125A Each; Specs2

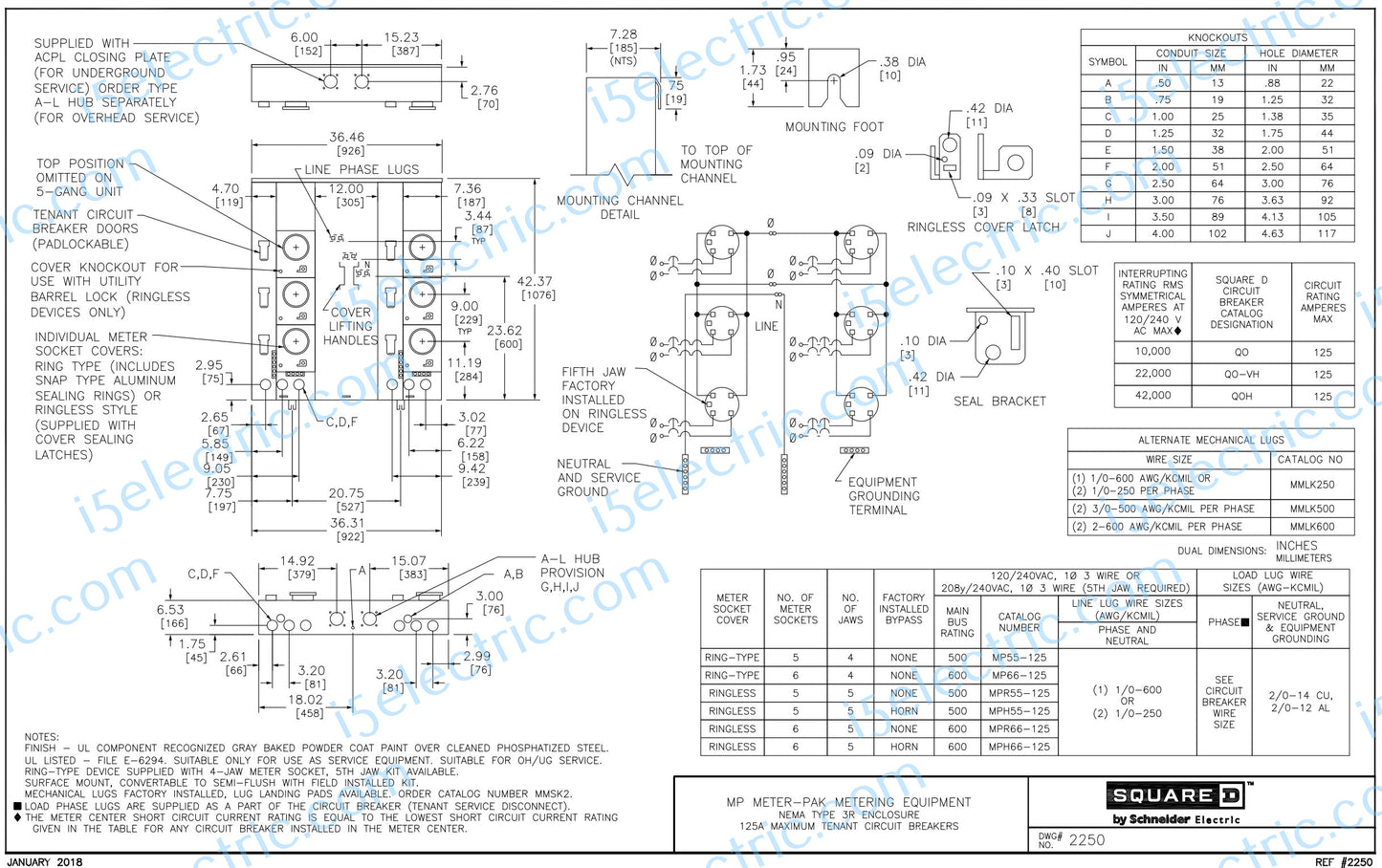

  • Meter-Pak MP55125 500A 5 Gang 125A Each; Draw
1 8

Square D

Square D Meter-Pak MP55125 500 Amp 5 Gang / Position 125A Socket OH/UG EUSERC

Square D Meter-Pak MP55125 500 Amp 5 Gang / Position 125A Socket OH/UG EUSERC

$3,499.00 USD
$3,499.00 USD
Sale Sold out
Square D MP55125 500A Bus 5 ring type meters socket 125A each. MP55-125 Overhead/Underground and meets EUSERC standards.

Call 503-980-3388 if you have any question.  All listings are in stock and ready to ship the next business day of order receiving unless specifically show out of stock.

This MP meter center has five ringed meter sockets with no bypass and a 4 jaw socket. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 500 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 42.37 inches tall, 36.46 inches wide and 7.28 inches deep. This MPH meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.

Note:

1. Though this is a brand-new item, and, we will add additional carton outside its original manufactory's carton packing. Due to its heavy weight and potential long transportation.  Some minor cosmetic imperfections might occur, such as minor scratches, tiny paint offs etc.  By ordering this item, you agree to accept those potential minor cosmetic imperfections if any, in which will not affect to its operational functionalities.

2. Item will be shipped with insurance and signature required. Please make sure someone will be at destination address to exam and sign the package.

3.  If you are not sure, please consult serving utility for their requirements prior to ordering and installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must comply with all national and local codes, laws and regulations. By ordering this item, you acknowledge that you already done your due diligence, fully understand installation requirements, confirmed with power/utility company and inspector for their approvals or fully understand the risks if you haven't done that yet and willing to take risk on your own.
