Square D MP44-125 400 Amp w/4-Gang 125A MP44125 Meter-Pak Socket EUSERC OH/UG as WEP4411

Square D MP44-125 400A Bus 4 ring type meters socket 125A each.  Overhead/Underground and meets EUSERC standards.

Call 503-980-3388 if you have any question.  All listings are in stock and ready to ship the next business day of order receiving unless specifically show out of stock.

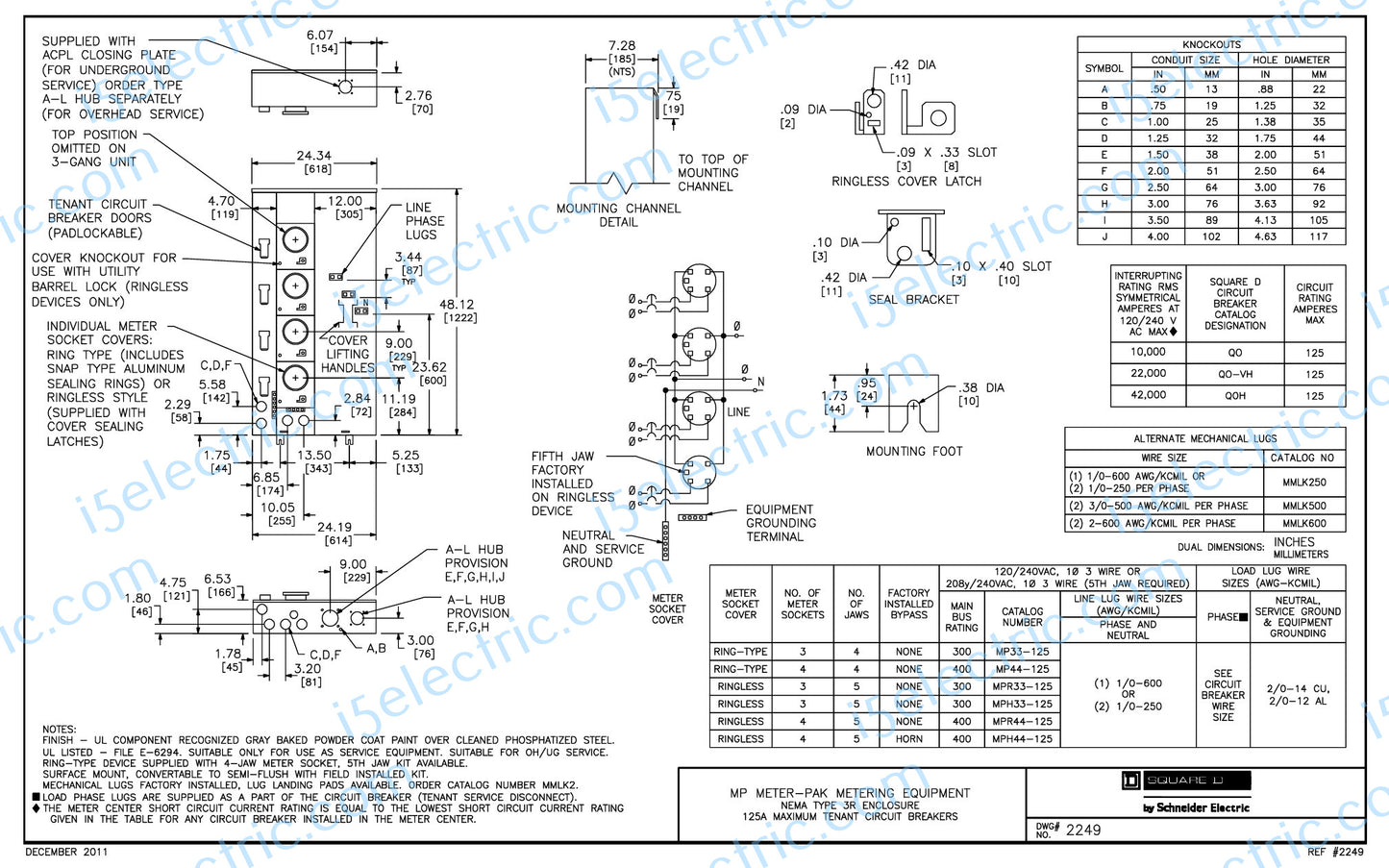

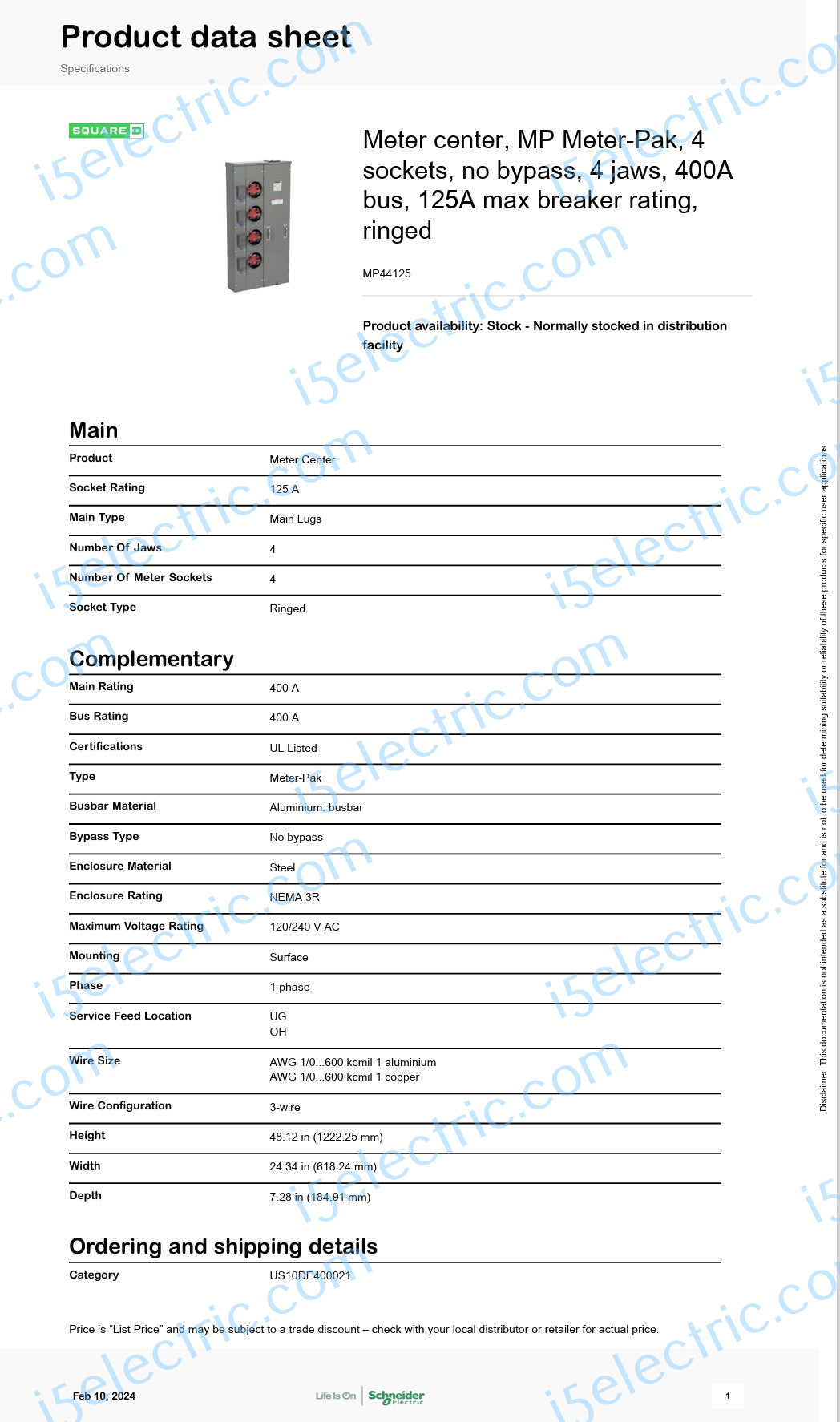

This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 400 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 48.12 inches tall, 24.34 inches wide and 7.28 inches deep. This MPH meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.

Note:

1. Though this is a brand-new item, and, we will add additional carton outside its original manufactory's carton packing. Due to its heavy weight (about 100 pounds shipping weight) and potential long transportation.  Some minor cosmetic imperfections might occur, such as minor scratches, tiny paint offs etc.  By ordering this item, you agree to accept those potential minor cosmetic imperfections if any, in which will not affect to its operational functionalities.
2. Item will be shipped with insurance and signature required. Please make sure someone will be at destination address to exam and sign the package.
3. If you are not sure, please confirm with your local power/utilities company and inspector for the requirements/approval of installation before place order.  By ordering this item, you acknowledge that you already done your due diligence and know the installation requirements or the risks if you don't.
