Square D

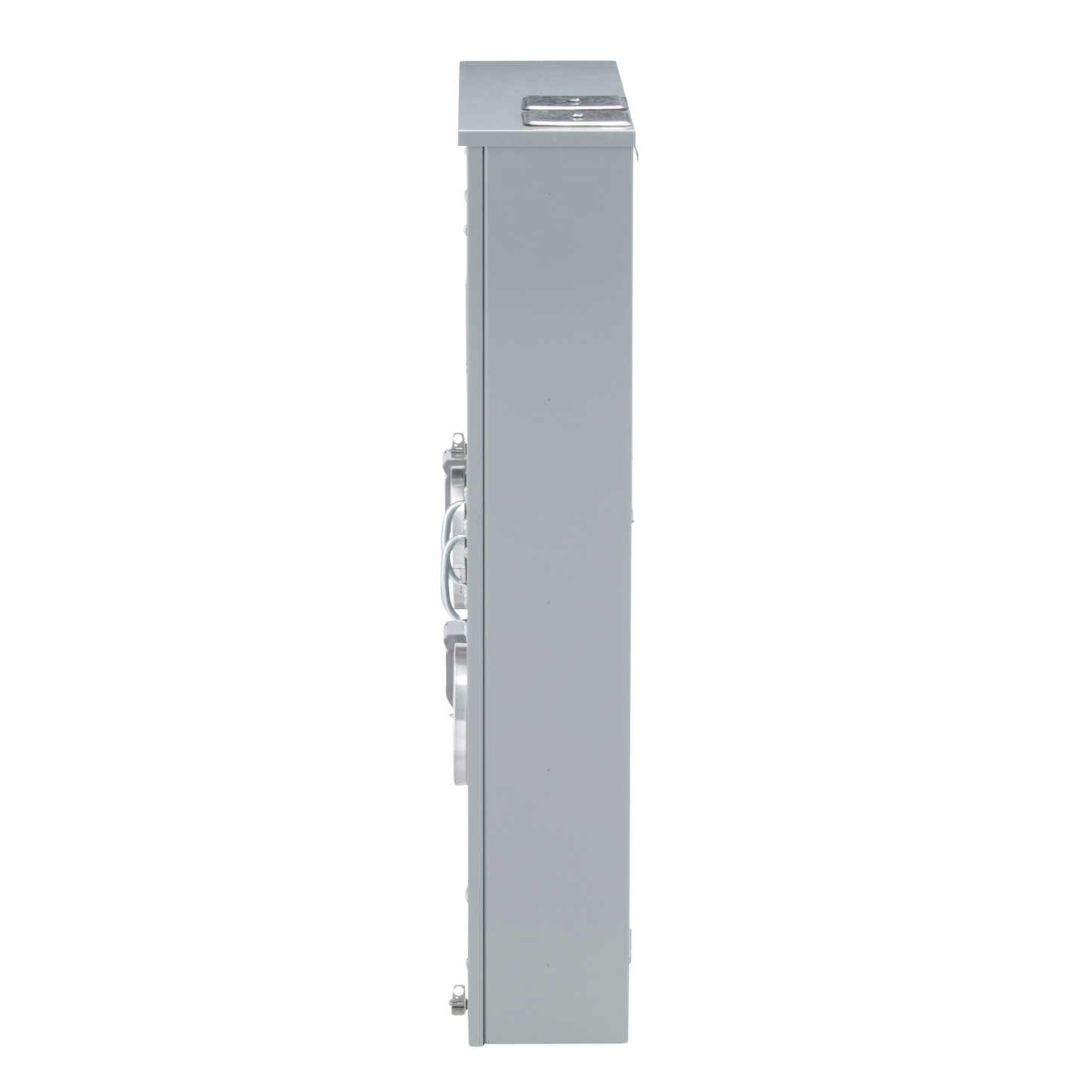

Square D MP42200 400 Amp w/2 Gang / Position 200A Meter Socket EUSERC OH/UG as WEP4212

Square D MP42200 400 Amp w/2 Gang / Position 200A Meter Socket EUSERC OH/UG as WEP4212

Regular price $2,999.00 USD
Regular price Sale price $2,999.00 USD
Sale Sold out

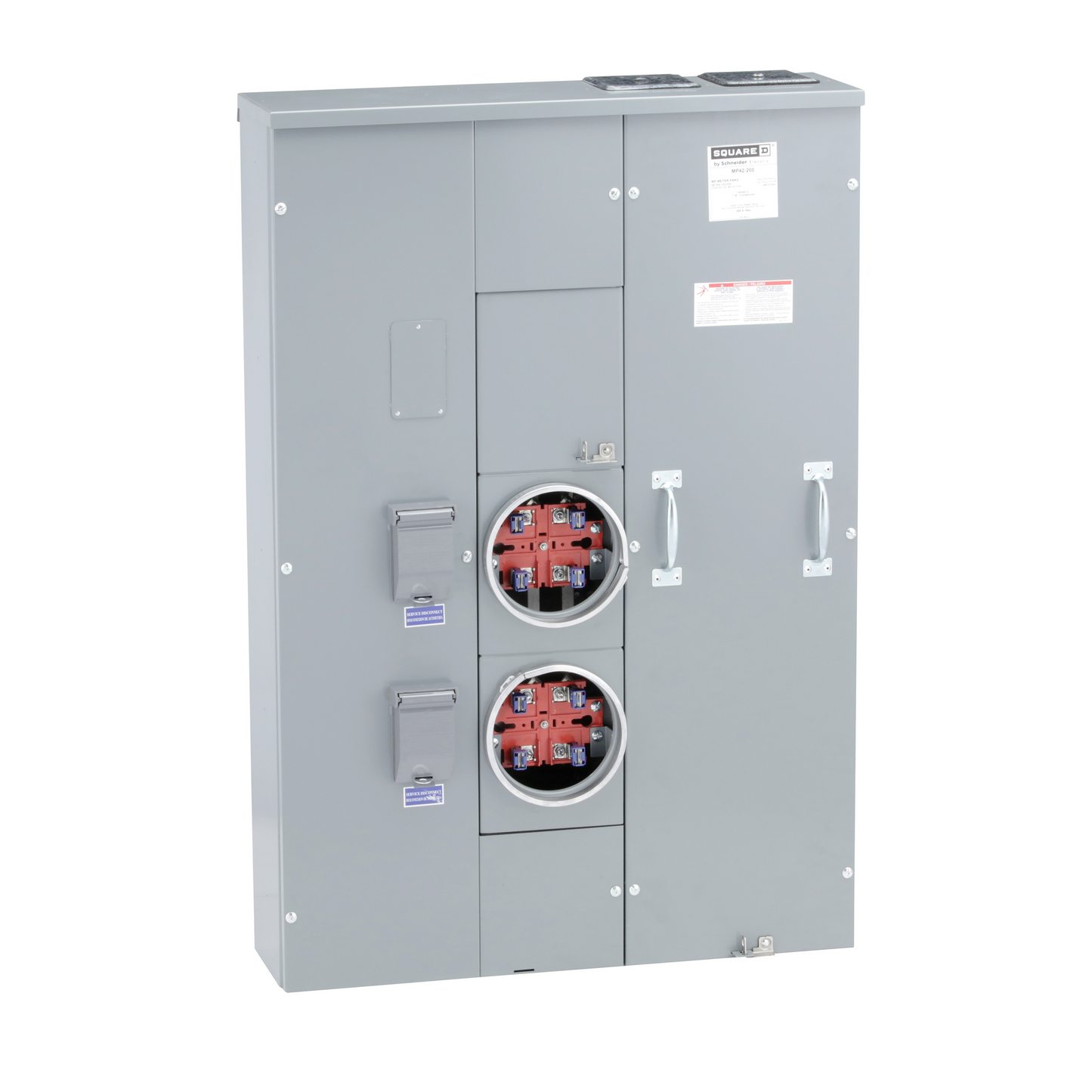

Square D MP42-200 400A Bus 2 ring type meters socket 200A each. Overhead/Underground and meets EUSERC standards.

This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 400 A. The maximum tenant main lugs amperage is 200 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 43.41 inches tall, 29.44 inches wide and 8.28 inches deep. This meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.



Note:

  1. Though this is a brand-new item, and, we will add additional carton outside its original manufactory's carton packing. Due to its heavy weight and potential long transportation.  Some minor cosmetic imperfections might occur, such as minor scratches, tiny paint offs etc.  By ordering this item, you agree to accept those potential minor cosmetic imperfections if any, in which will not affect to its operational functionalities.
  2. Item will be shipped with insurance and signature required. Please make sure someone will be at destination address to exam and sign the package.
  3. If you are not sure, please confirm with your local power/utilities company and inspector for the requirements/approval of installation before place order.  By ordering this item, you acknowledge that you already done your due diligence and know the installation requirements or the risks if you don't.
