Square D MP22-125 200 Amp w/2 Gang / Position 125A Meter Socket OH/UG as WP2211

Square D MP22-125 200 Amp w/2 Gang / Position 125A Meter Socket OH/UG as WP2211

$1,250.00 USD
$1,250.00 USD
Sale Sold out

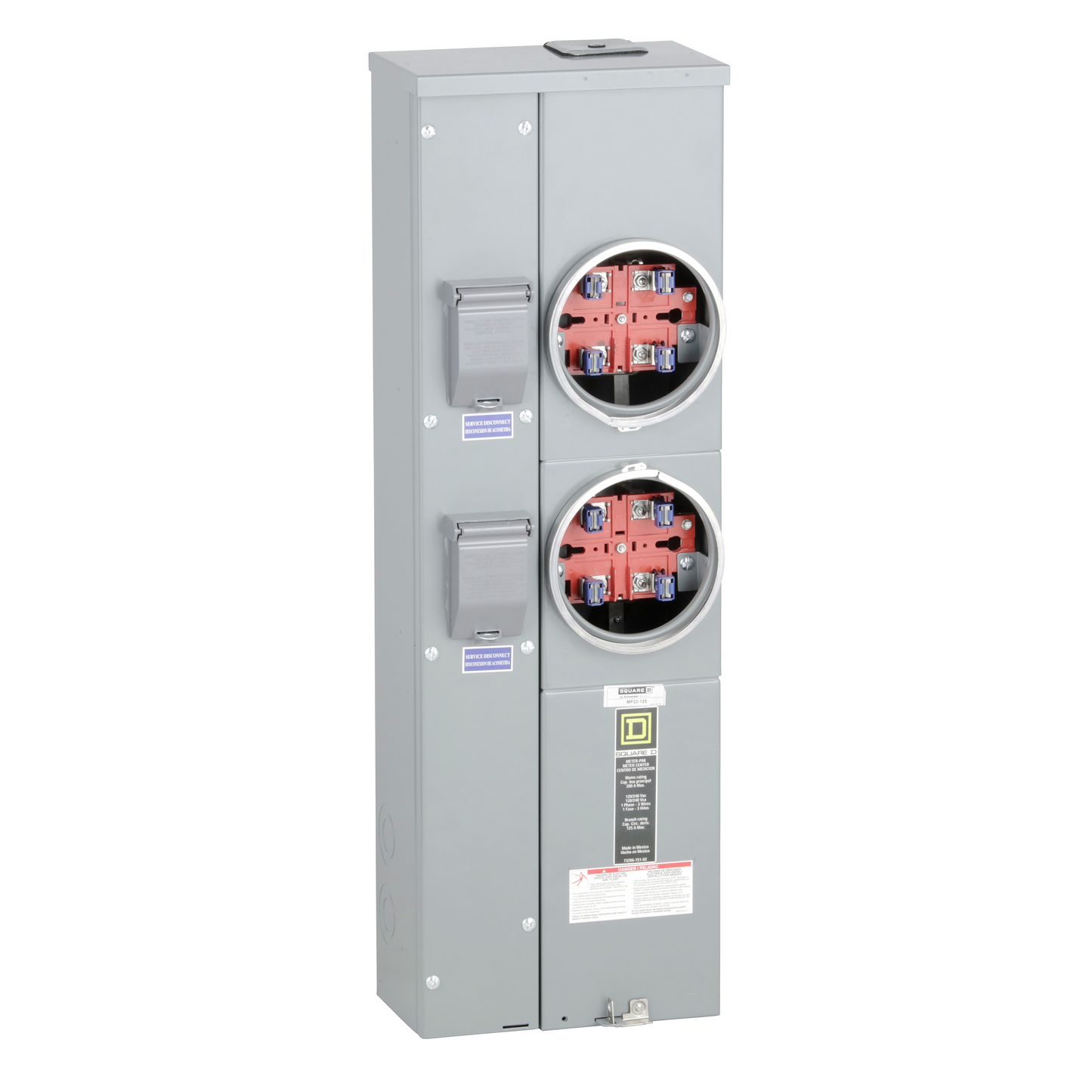

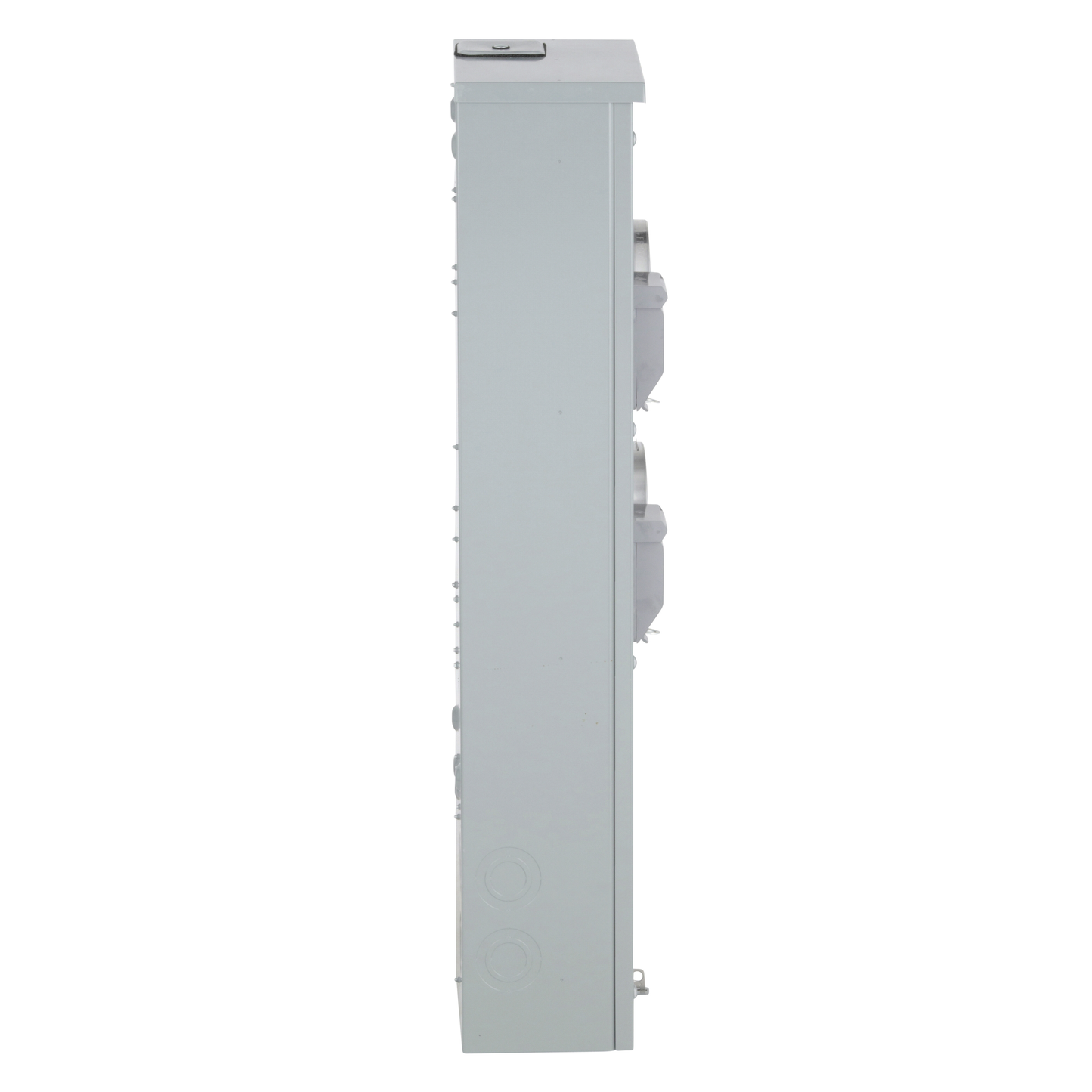

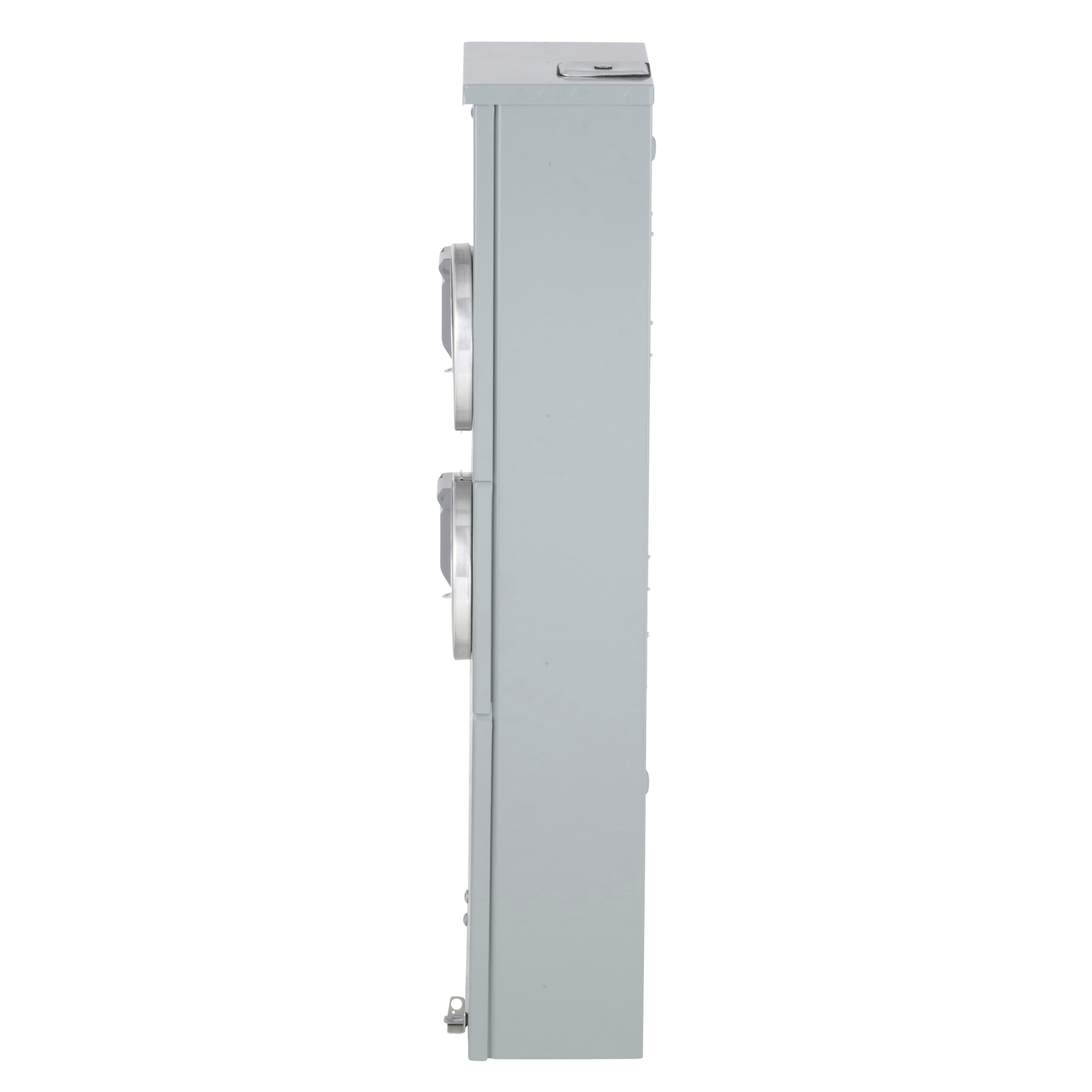

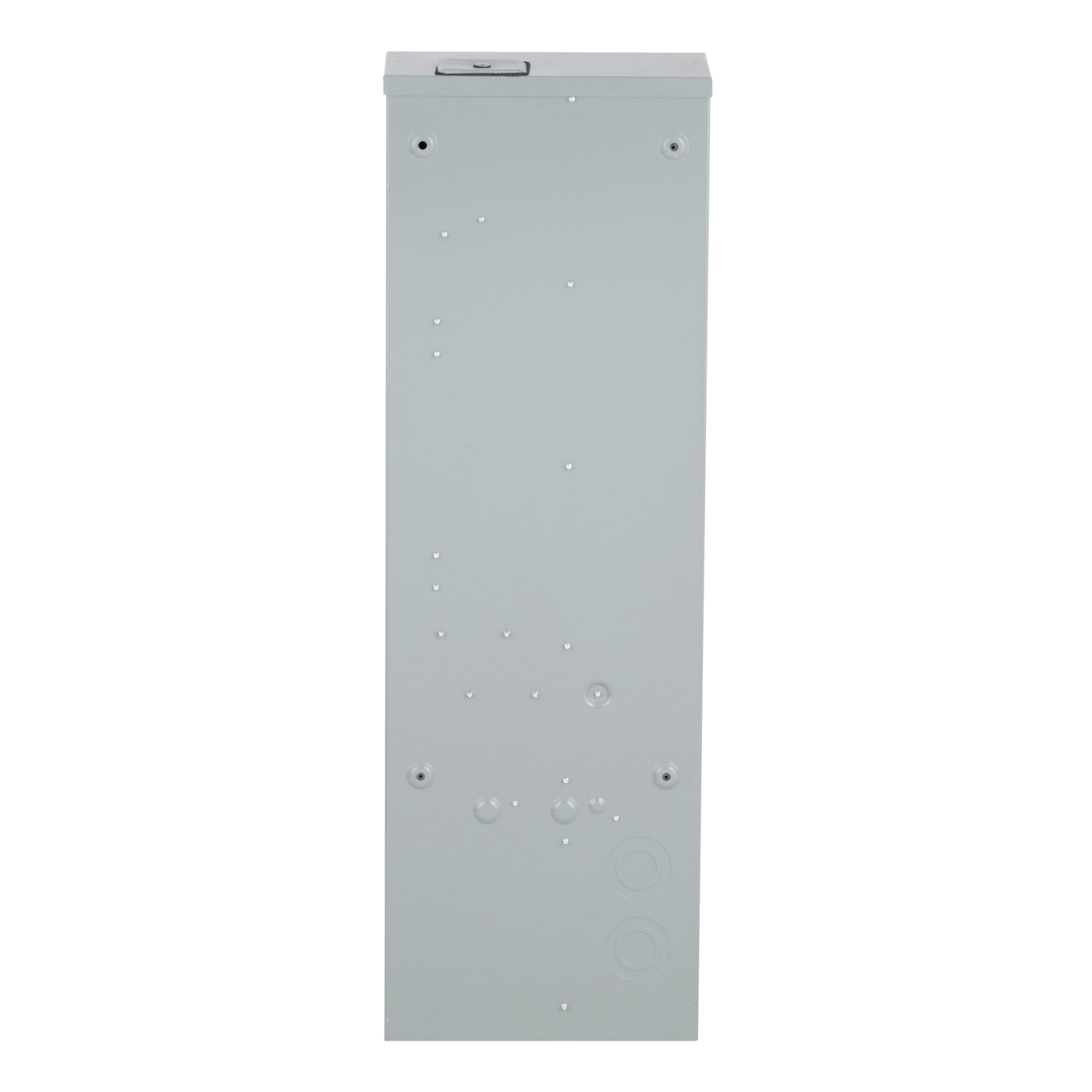

This is brand new Square D MP22-125 200 Amp 2 ring type meters socket 125A each. Overhead/Underground and meets EUSERC standards.

This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 200 A. The maximum tenant main lugs amperage is 125 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 37.50 inches tall, 12.28 inches wide and 7.28 inches deep. This MPH meter center with accept 4 AWG to 250 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.

Note: Item will be shipped with insurance and signature required. Please make sure someone will be at destination address to receive the package.
