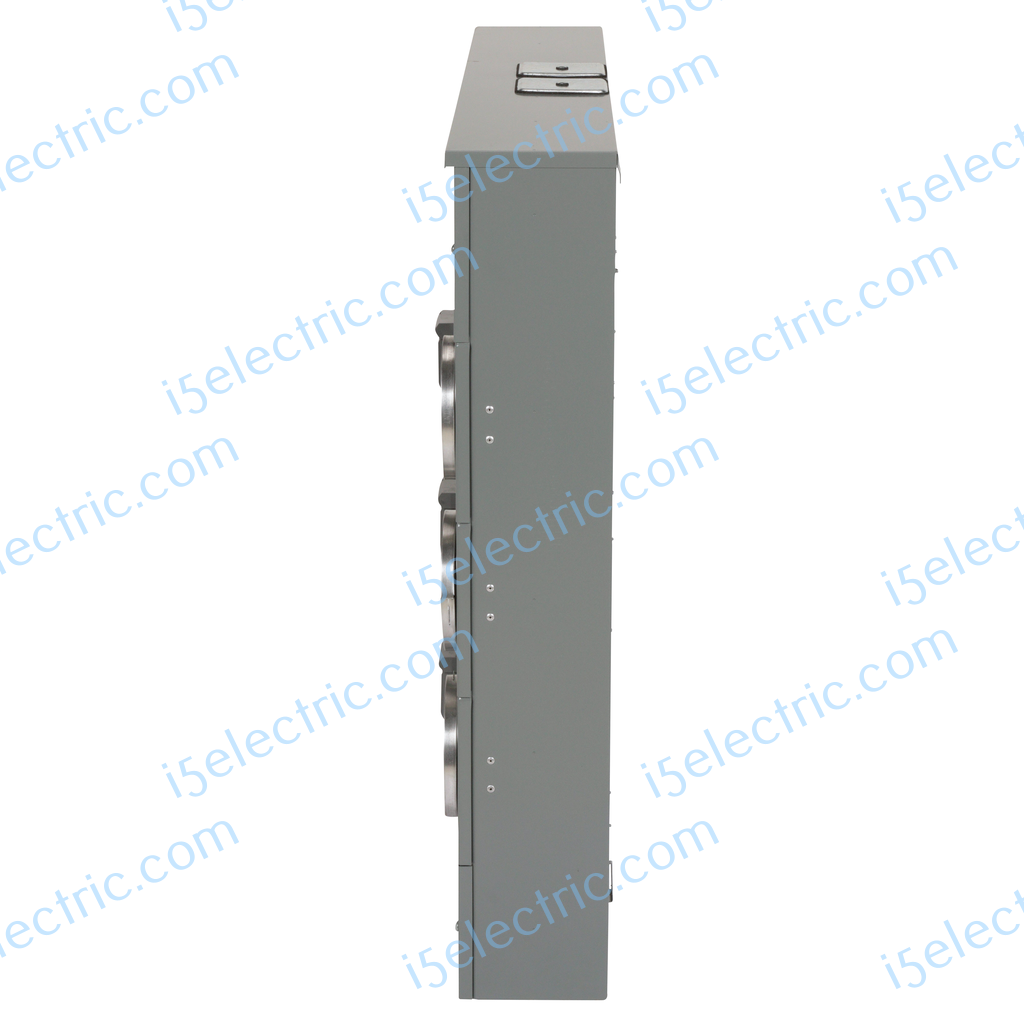

Square D Meter-Pak MP86200 800 Amp 6-Gang 200A Meter Socket OH/UG EUSERC as WEP8612

Square D Meter-Pak MP86200 800 Amp 6-Gang 200A Meter Socket OH/UG EUSERC as WEP8612

$4,499.00 USD
$4,499.00 USD
Sale Sold out

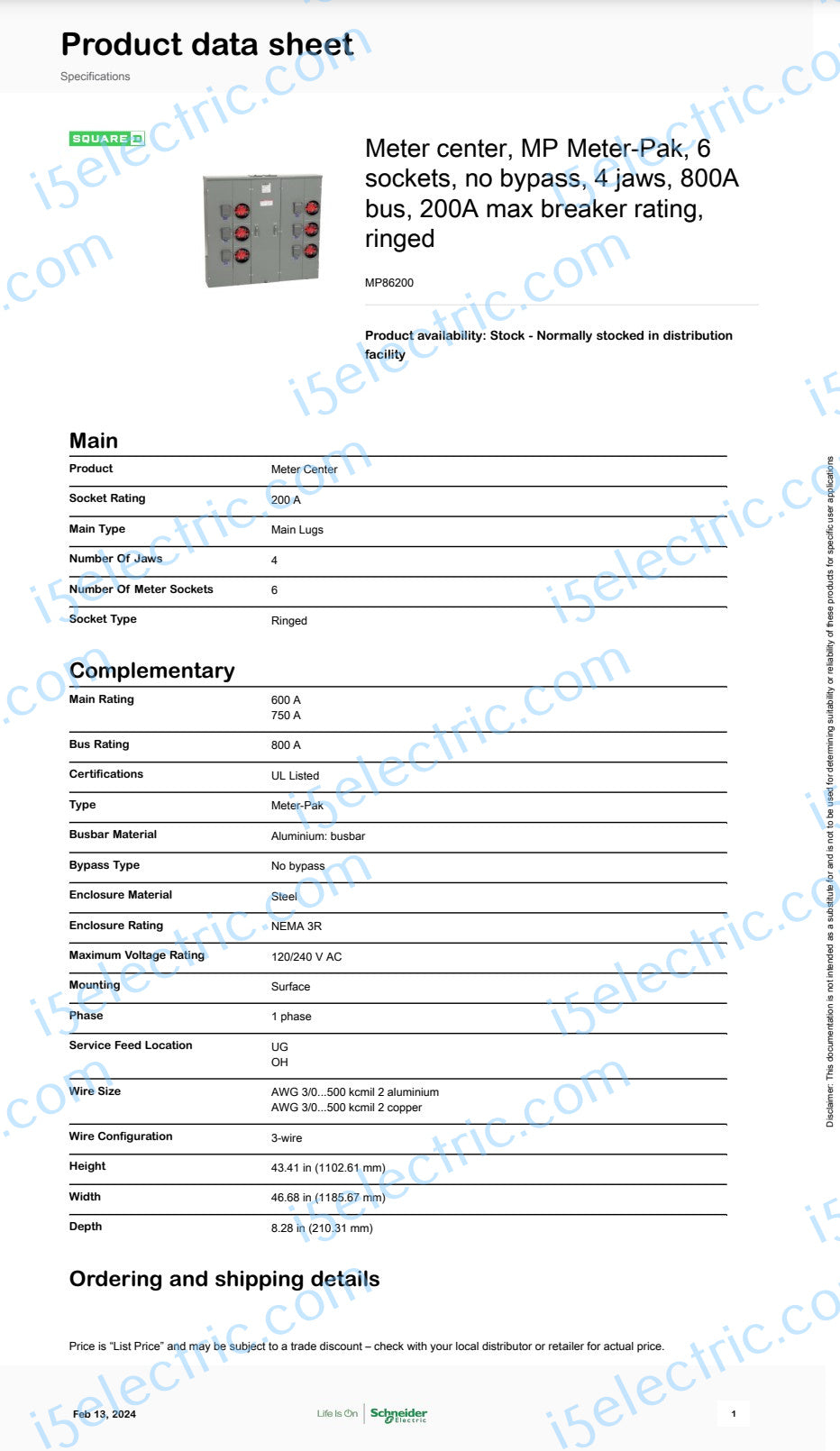

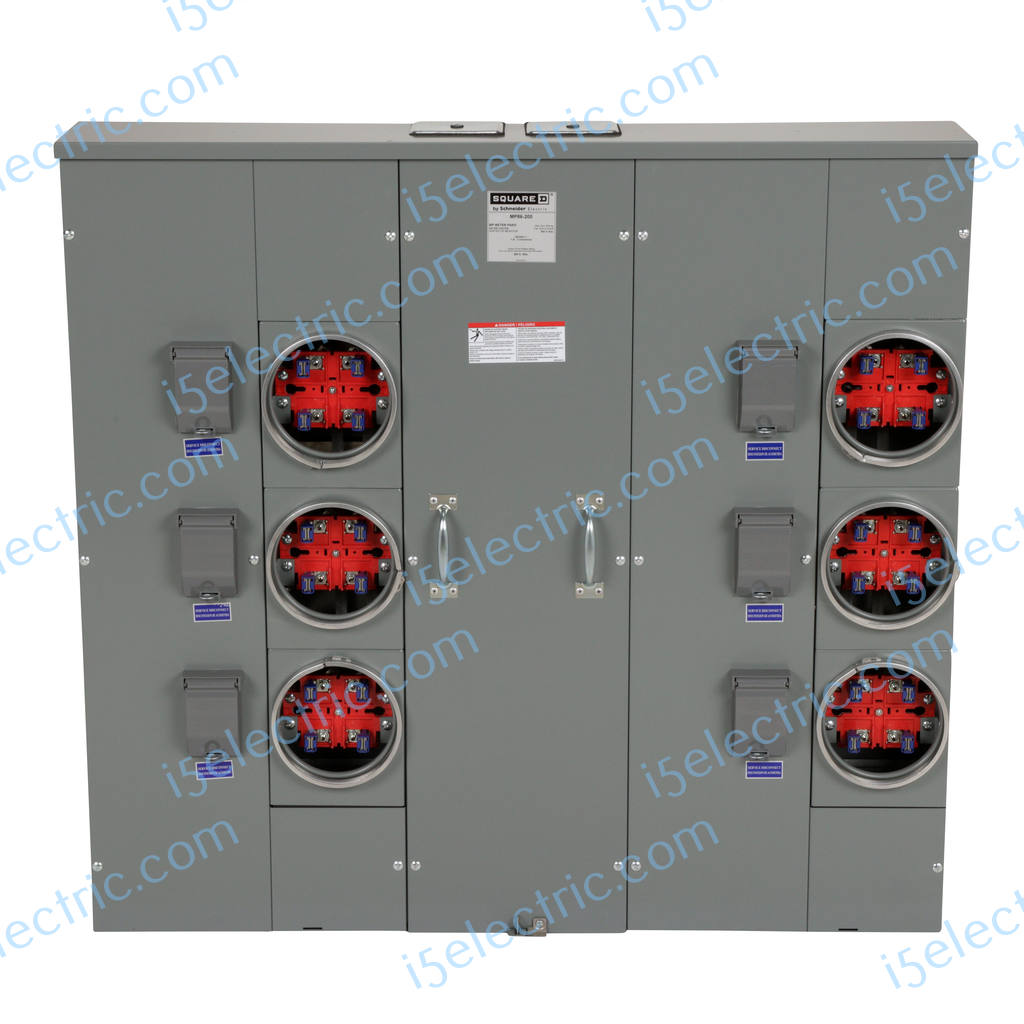

Square D MP86200 800A Bus 6-gang ring type meter sockets rate at 200A each. Overhead/Underground and meets EUSERC standards.
Call 503-980-3388 if you have any question.  All listings are in stock and ready to ship the next business day of order receiving unless specifically show out of stock.

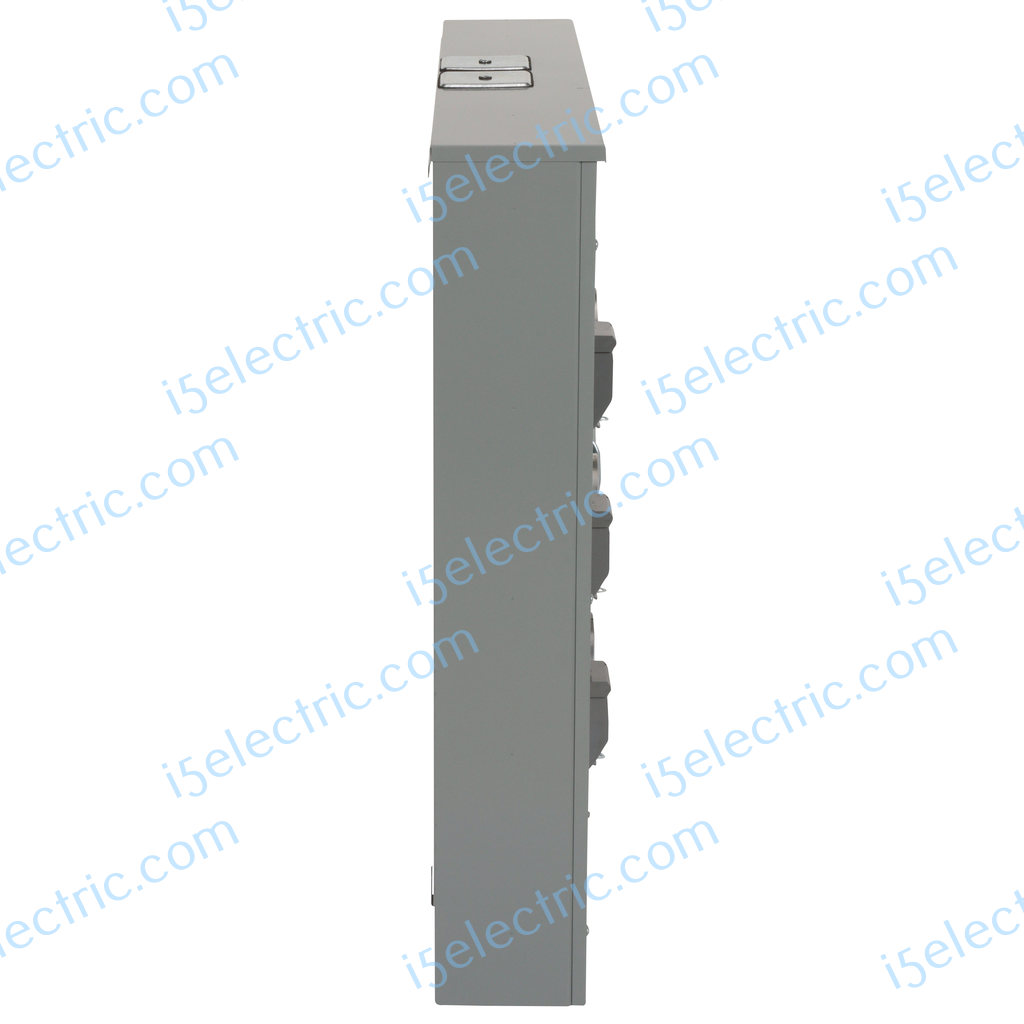

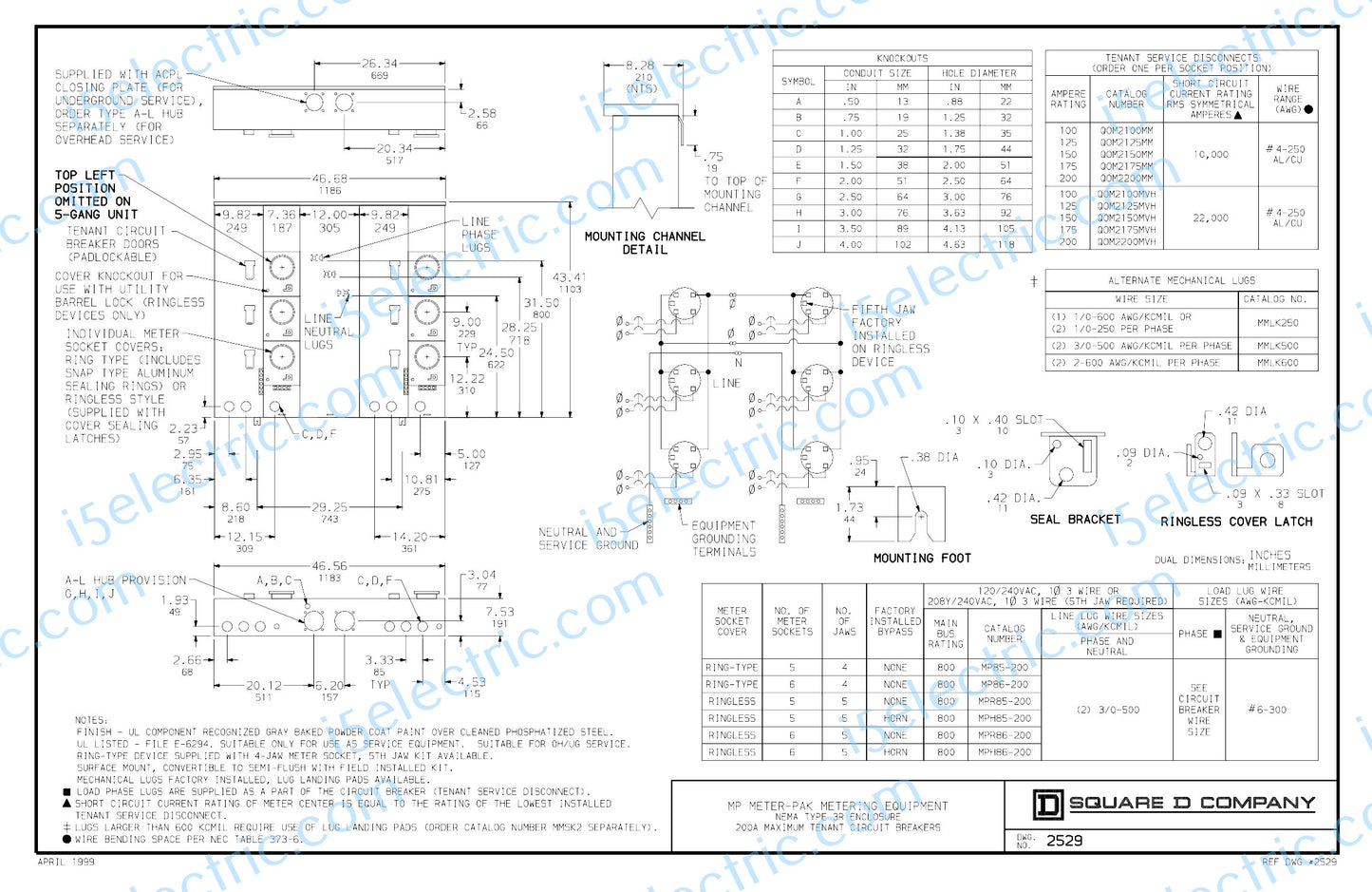

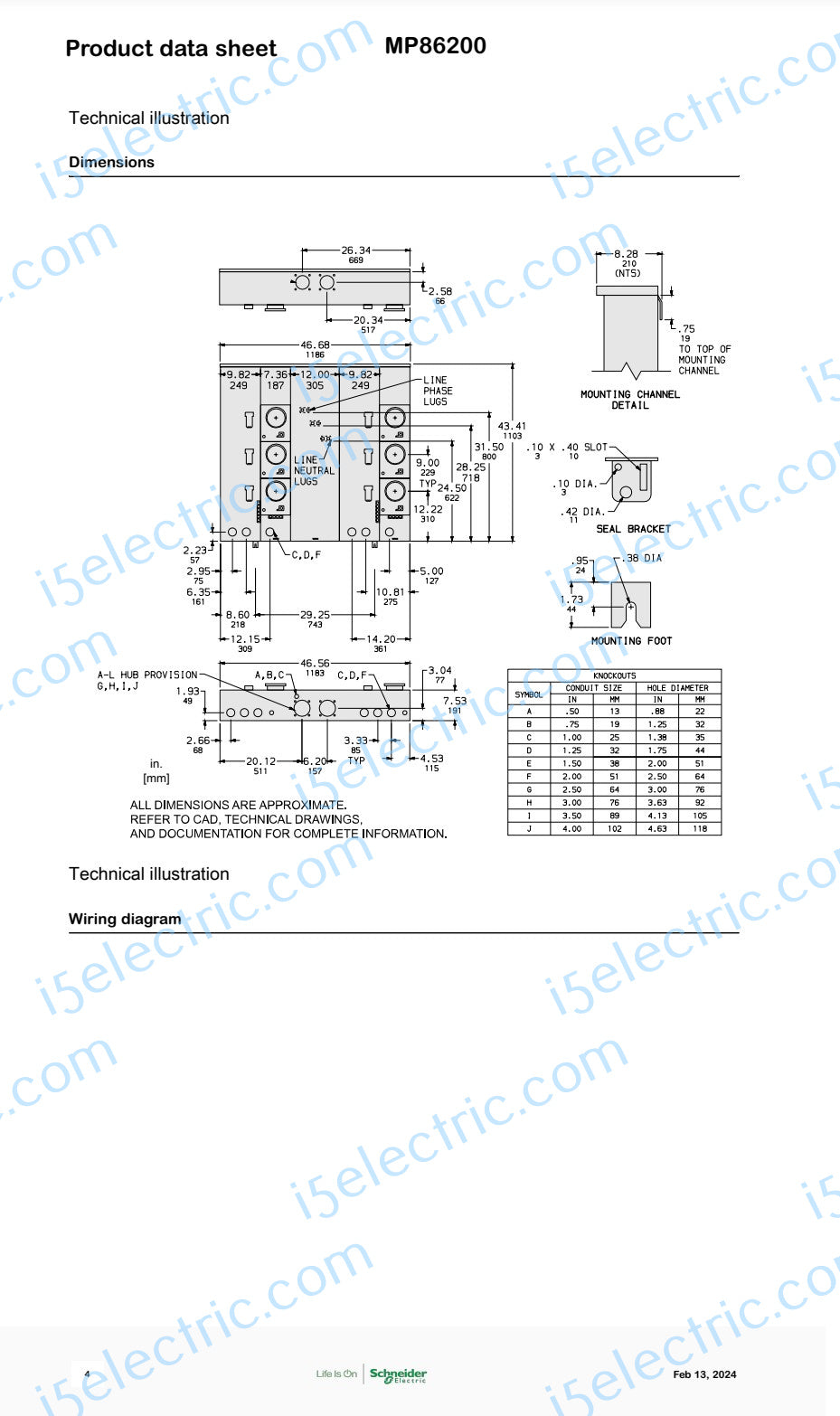

This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 800 A. The maximum tenant main lugs amperage is 200 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 43.41 inches tall, 46.68 inches wide and 8.28 inches deep. This MPH meter center with accept one or two 3/0 AWG to 500 kcmil copper or aluminum wire. This MP meter center unit is UL Listed.

Note:

1. As the total shipping weight is around 200lb, it has to be shipped freight.  Please contact us with destination information and delivery preference for a freight shipping quote before place order.

2. Though this is a brand-new item, and, we will add additional carton outside its original manufactory's carton packing. Due to its heavy weight (200 pounds shipping weight) and potential long transportation.  Some minor cosmetic imperfections might occur, such as minor scratches, tiny paint offs etc.  By ordering this item, you agree to accept those potential minor cosmetic imperfections if any, in which will not affect to its operational functionalities.

3. If you are not sure, please confirm with your local power/utilities company and inspector for the requirements/approval of installation before place order.  By ordering this item, you acknowledge that you already done your due diligence and know the installation requirements or the risks if you don't.
