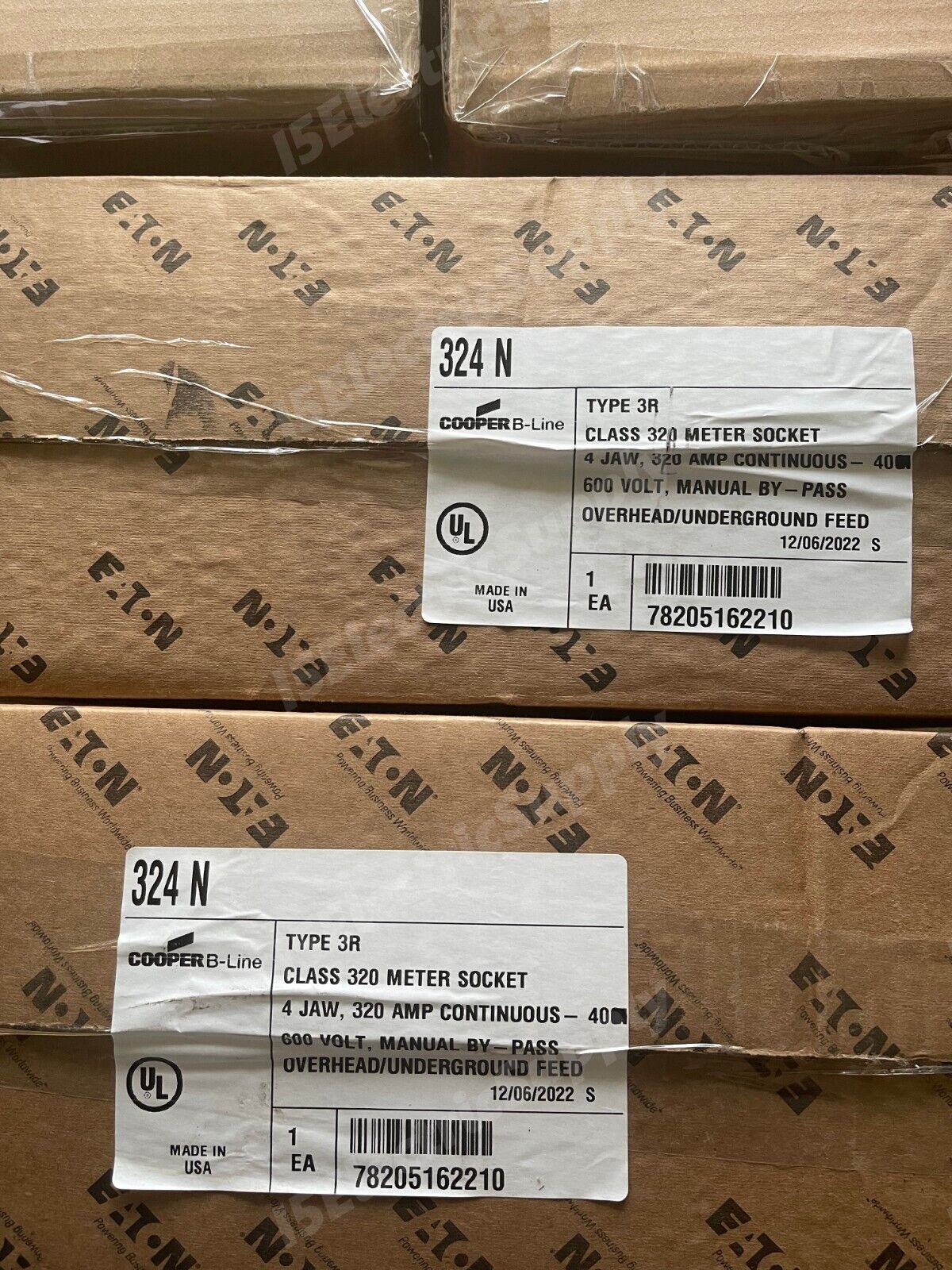

EATON 400 / 320 Amp Meter Base Socket Single Phase 324N Brand New UL Listed

Brand New 320/400 AMP EATON 324N meter base/meter socket. Overhead/ underground. UL listed and made in USA.  In stock and ready to ship.

This is ring type meter base, for ringless type and other types of meter base, please see my other listed items.

We ship fast. The item will be shipped same day if order is placed and paid before 1:00PM.

The item will be shipped with insurance coverage and signature required. In case no one at destination address could sign in-person, you will need to let me know when the order is placed so that we could have right arrangement for you.

PRODUCT SPECIFICATIONS

BRAND: EATON Cooper B-Line

CATALOG NUMBER:324N

PRODUCT LENGTH/DEPTH: 32 in

PRODUCT HEIGHT: 6 in

PRODUCT WIDTH:24 in

PRODUCT WEIGHT:34 lb

COMPLIANCES:EUSERC Approved

CERTIFICATIONS:UL Listed

PHASE:Single-phase

NUMBER OF JAWS:Four-jaw

SECURITY:Ring

AMPERAGE RATING: 400A / 320A Continuos

HUB TYPE:H-base hub provision

LINE:#4-600 kcmil

LOAD:#1/0-250 kcmil

FEED TYPE:Top/bottom

BYPASS:Provision

NUMBER OF WIRES:Three-wire

Please refer to Eaton web site for more details.

If you are not sure about this product, please confirm with your power/utility company and inspector for installation approval before place order.
